how to draw line in AutoCAD?

-

What is a line?

Two points connect to form a line.

Line Command:

Type "line" or "L" and press "Enter" or Spacebar".

Two different devices are used to draw a line in AutoCAD.
  1. Keyboard
  2. Mouse

With the help of a keyboard:

There are two ways to draw a line with a keyboard.
  1. Relative point entry system
  2.  Polar point entry system

Relative point entry system:

  • Indicates a point's distance and it's direction (+ or -) along the x,y
  • "+" sign indicates the direction of line to the right side in the x-axis and upward in the y-axis.
  • "-" sign indicates the direction of line to the left side in the x-axis and downward in the y-axis.
  • Ponts are specified as (x,y).



X and Y (X, Y):

  • x specifies the distance to the x-axis.
  • y specifies the distance to the y-axis.
Let's suppose you have to draw a line of length 20 units from the origin.
  • Type "line" or "L"
  • Press "Enter" or "Spacebar"
  • Specify the first point.
  • Type "0" for x
  • Type comma (,)
  • Type "0" for y
  • Press "Enter" or "Spacebar".
The first point is specified at the origin (0,0). Now you have to specify the next point.
  •  Type 20 for x
  • Type comma (,)
  • As we know, we are not going to the y-axis. So, press "0" for y.
  • Press "Enter" or "Spacebar"
  • Next point is specified.
  • AutoCAD automatically connects these points and form a line od 20 units.

Polar point entry system:

  • Specify the point with an angle.
  • To specify a point enter a distance and an angle separated by an angle bracket (<)
The general form is (K<ANGLE)
  • K is the length of the line from the last point.
  • Angle specifies the direction of the line.
If you want to draw a line to right side, specify the angle as "0" or "360".

If you want to draw a line to left side, specify the angle as 180.
If you want to draw line upward, specify the angle as 90.

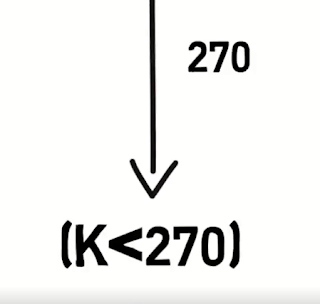

If you want to draw a line downward, specify angle as 270.

With the help of mouse:

  • Click the line icon with the mouse.
  • Move your cursor to the drawing area.
  • Specify the first point by left-clicking.
  • Move your cursor and specify next point.
Watch the video about Line Command
