How to Draw Arcs in AutoCAD - Arc Command in AutoCAD

ARC Command: ARC: Arc is part of a curve, especially a part of the circumference of a circle. Command: The shortcut key of ARC command is "A". You can also access ARC command by clicking this icon There are different options/ways to draw ARC in AutoCAD. The default one is 3-point. Other options/ways written as below: 3-Point Start, Center, End Start, Center, Angle Start, Center, Length Start, End, Angle Start, End, Direction Start, End, Radius Center, Start, End Center, Start, Length Continue 3-Point: In 3-Point, you need to specify three points with the help of a mouse or keyboard. These three points are on the circumference. Start, Center, End: First, specify the starting point of the arc then center and then the endpoint of the arc. Start, Center, Angle: The first point you specify on the screen is the starting point. Then you need to specify the center point as above and then give the angle to give direction. Star...

Circle Command in AutoCAD - How to Draw circle in AutoCAD?

What is Circle? A round plane figure whose boundary (circumference) consists of points equidistant from a fixed point (center). Circle Command: The shortcut key for circle command is "C". You can also access to circle command by clicking this icon. There are different options/ways to draw a circle in AutoCAD. The default one is the center, radius. Other options/ways written as below: Center, Radis Center, Diameter 2-Point 3-Point Tangent, Tangent, Radius Tangent, Tangent, Tangent Center, Radius: First, you need to specify the center point of a circle then specify the radius of your circle with a keyboard or with the help of mouse. The above circle draws with a center, radius. Its radius is 10. Center, Diameter: First, you need to specify the center point of your circle then specify the diameter of your circle with a keyboard or with the help o mouse.  The above circle draws with a center, diameter. Its diame...

what is the difference between line and polyline in AutoCAD?

Difference between Line and Polyline (Pline): The Line and Polyline are two commands with different properties in AutoCAD. In Line Command every time we click, the part between two points.  The Line Command allows you to create a single straight line or a chain of straight lines.  When we select a polyline it selected as a whole object. On the other side when we select Line it is selected as a single line segment.  We can edit Polyline with " PEDIT Command ". On the other side, there is no specific command to edit line. Pline Command can draw curve segments as well as line straight ones but Line Command can draw only line segments. A polyline can have width but a line has no width. After drawing a polyline, you can use the PEdit Command to reshape the polyline into a smooth, flowing curve based on the vertex points you selected but you cannot do this with the line. We can select one line among the chain of lines to edit the drawing. However, in the...

Polyline Command in AutoCAD - AutoCAD Commands

Polyline Command Polyline: A polyline is a connected sequence of segments created as a single planer object. You can create straight line segments, arc segments or a combination of two. Polyline is also called PLINE and short form of pline is PL. You can also access Polyline command by clicking this icon. You can also modify polyline. There are some modifications as below: Arc Close  Halfwidth Length  Undo Width Sets the starting point for polyline If you specify the second point, you draw line segments. If you enter "a" (a for arc), you draw arc segments. ARC: The following prompts are displayed when you draw arc segments. End Pont Angle Center Close  Direction Halfwidth line  Radius  second pt undo width Watch the  video  about Polyline Command. Also, Like our  Facebook Page  and  YouTube Channel .

how to draw line in AutoCAD?

What is a line? Two points connect to form a line. Line Command: Type "line" or "L" and press "Enter" or Spacebar". Two different devices are used to draw a line in AutoCAD. Keyboard Mouse With the help of a keyboard: There are two ways to draw a line with a keyboard. Relative point entry system   Polar point entry system Relative point entry system: Indicates a point's distance and it's direction (+ or -) along the x,y "+" sign indicates the direction of line to the right side in the x-axis and upward in the y-axis. "-" sign indicates the direction of line to the left side in the x-axis and downward in the y-axis.  Ponts are specified as (x,y). X and Y (X, Y): x specifies the distance to the x-axis. y specifies the distance to the y-axis. Let's suppose you have to draw a line of length 20 units from the origin. Type "line" or "L" Press ...

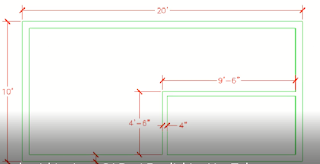

How to set limits and grid in AutoCAD?

Limits: Limits set an invisible rectangular boundary in the drawing area that can limit the grid display and limit clicking or entering points locations. The short form of the limit command is "lim".  Type "limits" or "lim" and press enter or spacebar. Specify upper right and lower left corners. Lower left corner: It specifies the lower left corner for the drawing limits. Upper right corner: It specifies a point in drawing area that represents the opposite corner of the rectangular limits boundary. Consider you have to draw a plot of length 20 units and width 10 units. In order to show that plot in your drawing, we can mark it as limits. While putting limits we can give the coordinates of the lower left corner as zero comma zero (0,0) and upper right corner as 20 comma 10 (20,10). With this procision, you can draw your drawing within the limit area. In order to view your limit area, you have to make some certain settings. Grid: ...
